Mạch nạp đa năng TOP2013 USB Universal Programmer được sử dụng để nạp chương trình cho vô số các loại IC, Vi điều khiển MCU, EPROMs, EEPROMs và các loại bộ nhớ Flash khác nhau, mạch có thiết kế nhỏ gọn, chuyên nghiệp, giao tiếp với máy tính qua cổng USB và phần mềm đi kèm rất dễ sử dụng.

Thông số kỹ thuật

Ứng dụng cho kiểu chân: 8 chân tới 40 chân

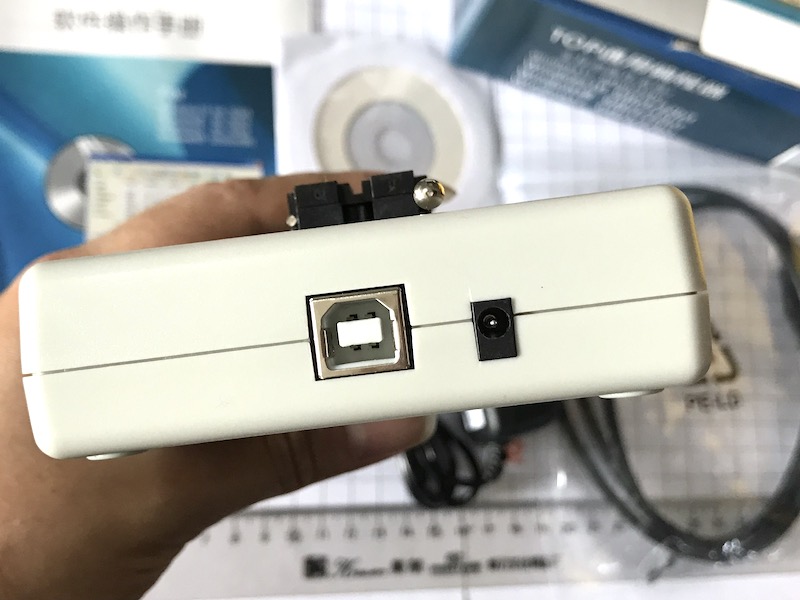

Kiểu giao tiếp: USB
Điện áp cung cấp: 2.5 V tới 6.5 V
Nguồn: sử dụng nguồn USB 5V hoặc nguồn ngoài
Tốc độ truyền: 12MHz/s
Chức năng bảo vệ quá dòng
Tự động phát hiện chân thiếu
Tự động phát hiện kiểu IC
Hệ điều hành: XP/VISTA/Windows 7
Kích thước: 155 x 110 x 26 mm
Trọng lượng: 275 g

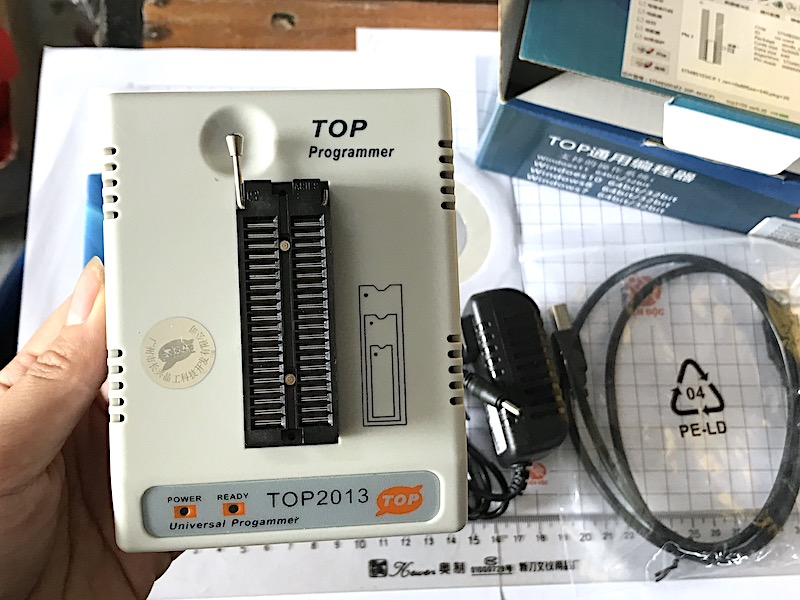

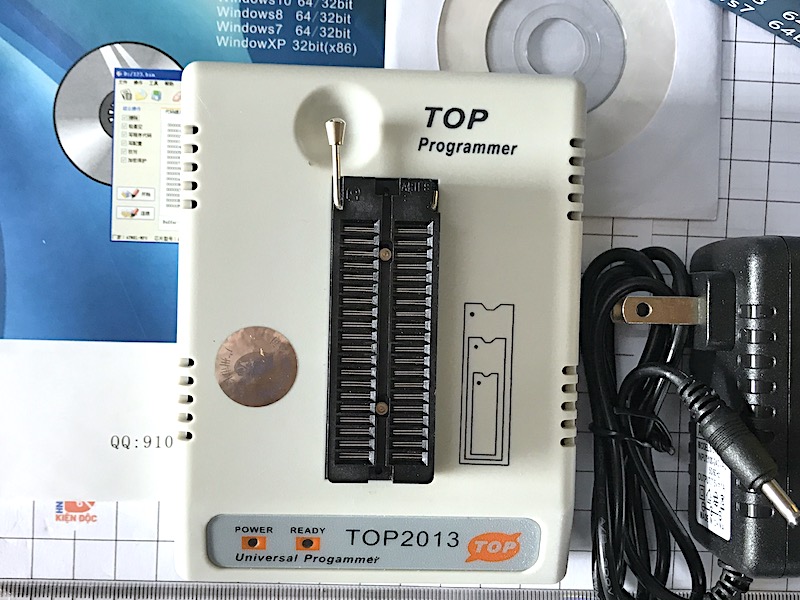

TOP2013

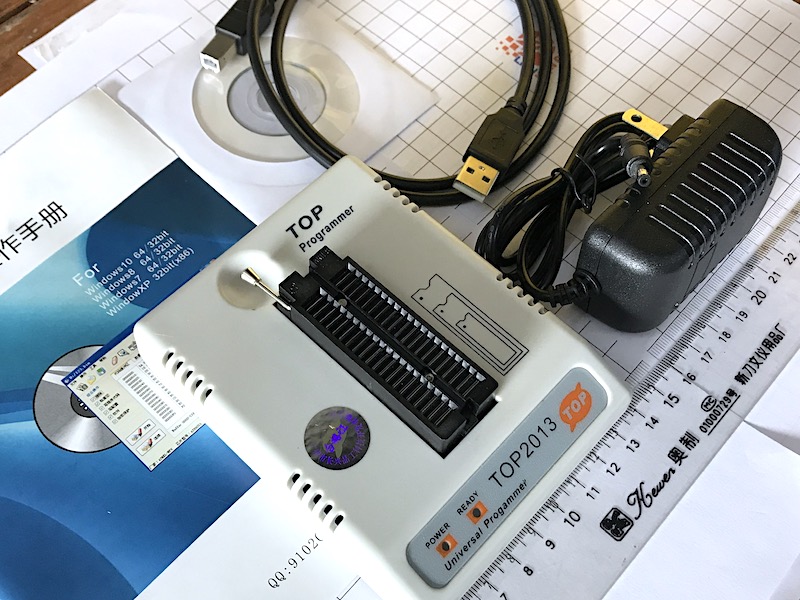

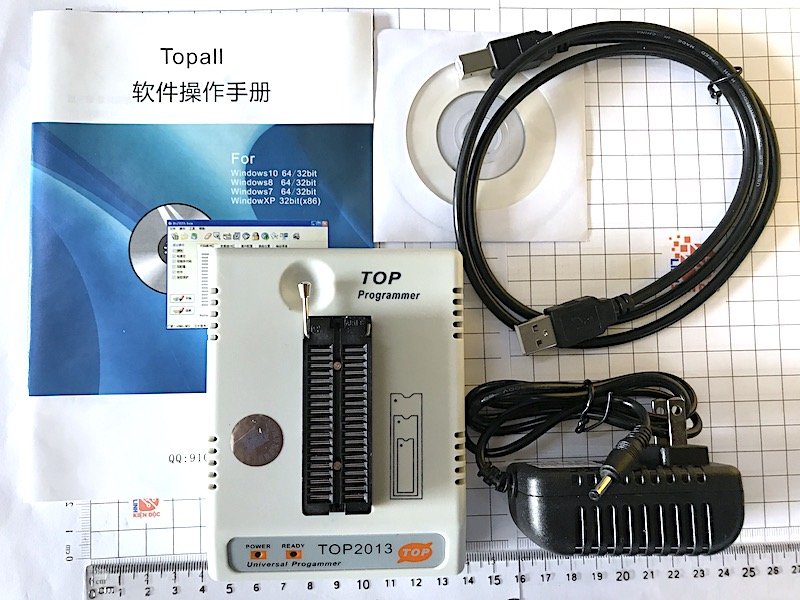

Bộ sản phẩm bao gồm:

Danh sách các loại chip mà mạch nạp TOP 2013 hỗ trợ

GAL16V8 ATF16V8 GAL20V8 GAL22V8

2716-12.7V, 2716-21V, 2716-25V, 2732-12.7V, 2732-21V, 2732-25V, 2764-12.7V, 27C64-12.7V,
2764-21V, 27128-12.7V, 27C128-12.7V, 27128-21V, 27C128-21V, 27256-12.7V, 27C256-12.7V,
27512-12.7V, 27C512-12.7V, 27513-12.7V, 27C513-12.7V, 27C010-12.7V, 27C020-12.7V,
27C040-12.7V, 27C080-12.7V, 27C801-12.7V,

EPROM-AMD

Am2716-12.7V, Am2716-21V, Am2716-25V, Am2732-12.7V, Am2732-21V, Am2732-25V, Am2764-21V,
Am2764A-12.5V, Am27C64-12.5V, Am27128-21V, Am27128A-12.5V, Am27C128-12.7V, Am27256HV-21V,
Am27C256-12.75V, Am27C256P-12.75V, Am27H256-12.75V, Am27512-12.75V, Am27512/L-12.75V,
Am27C010-12.75V, Am27H010-12.75V, Am27HB010-12.75V, Am27C020-12.75V, Am27C040-12.75V,
Am27C080-12.7V,

EPROM-ATMEL

AT2716-12.7V, AT2716-21V, AT2716-25V, AT2732-12.7V, AT2732-21V, AT2732-25V, AT27HC64-12.7V,
AT27HC64L-12.7V, AT27C128-12.7V, AT27C256-12.7V, AT27HC256-12.7V, AT27/HC256-12.7V,
AT27C512-12.7V, AT27C512R-12.7V, AT27C513-12.7V, AT27C513R-12.7V, AT27C010/L-12.7V,
AT27C011-12.7V, AT27C040-12.7V, AT27C080-12.7V,

EPROM-CATALYST

CAT2764A-12.7V, CAT27128A-12.7V, CAT27C128-12.7V, CAT27C256-12.7V, CAT27512-12.7V,
CAT27C010-12.7V,

EPROM-FUJITSU

MBM2716-12.7V, MBM2716-21V, MBM2716-25V, MBM2732-12.7V, MBM2732-21V, MBM2732-25V,
MBM2764-21V, MBM27C64-21V, MBM27128-21V, MBM27C128-21V, MBM27256-12.7V, MBM27C256A-12.7V,
MBM27C512-12.7V, MBM27C1000-12.7V, MBM27C1001-12.7V, MBM27C4001-12.7V, MBM27C080-12.7V,

EPROM-GENERAL

2716-12.7V, 2716-21V, 2716-25V, 2732-12.7V, 2732-21V, 2732-25V, 2764-21V, 27C64-21V,
2764A-12.7V, 27C6A-12.7V, 27128-21V, 27128A-12.7V, 27C128-12.7V, 27256, 27C256, 27256HV-21V,
27512, 27C512, 27512HV-21V, 27513, 27C513, 27010, 27C010, 27011, 27C011, 27101, 27C101,
27C020, 27C040, 27C080,

EPROM-HITACHI

HN27C64-21V, HN27128AG-12.7V, HN27128P-21V, HN27/C256, HN27/C512, HN27C101, HN27C301,

EPROM-ST

27128, 27C128, 27256, 27C256, 27512, 27C512, 27C1000, 27C1001, 27C405, 27C4001, 27C801,

EPROM-HYUNDAI

27C64-12.7V, 27C128-12.7V, 27C256-12.7V, 27C512, 27C010, 27C020,

EPROM-ICT

27CX256, 27CX128, 27CX256, 27CX512, 27CX010, 27CX020,

EPROM-INTEL

i2716-12.7V, i2716-21V, i2716-25V, i2732-12.7V, i2732-21V, i2732-25V, i2764-21V,
i27C64-12.7V, i2764A-12.7V, i87C64-12.7V, i27128-21V, i27A128-12.7V, i27C128-12.7V,
i27C256-12.7V, i87C256-12.7V, i27C512, i27C010, i27010, i27010A, i27020, i27C040,
i27C080,

EPROM-MATSUSHITA

27C256, 27C128, 27C256, 27C512, 27C010, 27C020,

EPROM-MICROCHIP

27C64-12.7V, 27C128-12.7V, 27HC256, 27C512, 27513, 27C513, 27C010, 27C020,

EPROM-MITSUBISHI

M5L2764-21V, M5L27C128-12.7V, M5M27128/K-21V, M5M27K-12.7V, M5MC256-12.7V, M5M27C512,
M5M27K512, M5M27C100, M5M27C101, M5M27C201, M5M27C401,

EPROM-MXIC

MX2716-12.7V, MX2716-21V, MX2716-25V, MX2732-12.7V, MX2732-21V, MX2732-25V, MX27C256-12.7V,
MX27C512-12.7V, MX27C1000-12.7V,

EPROM-NEC

D2716-12.7V, D2716-21V, D2716-25V, D2732-12.7V, D2732-21V, D2732-25V, D2764-21V,
D27C64-12.7V, D27128-21V, D27/C256-21V, D27C256A-12.7V, D27C512, D27C1000, D27C1000A,
D27C1001, D27C1001A, D27C2001, D27C4001,

EPROM-NS

NM2716-12.7V, NM2716-21V, NM2716-25V, NM2732-12.7V, NM2732-21V, NM2732-25V, NM27LC64-12.7V,
NM27C256-12.7V, NM27LC256-12.7V, NMC87C257-12.7V, NM27LC512, NM27LV512, NM27P512,
NMC27C64, NM27C128/B-12.7V, NMC27C128/B-12.7V, NMC27CP128-12.7V, NMC27C256-12.7V,
NMC27C256B-12.7V, NM27C512, NMC27C512, NMC27C512A, NMC27C010, NMC27C020,

EPROM-OKI

MSM2716-12.7V, MSM2716-21V, MSM2716-25V, MSM2732-12.7V, MSM2732-21V, MSM2732-25V,
MSM2764A-12.7V, MSM2764AS-21V, MSM27128A-12.7V, MSM27128AS-21V, MSM27256AS-12.7V,
MSM27512AS, MSM271000,

EPROM-RICOH

27C64-21V, 27C256-12.7V,

EPROM-SAMSUNG

KM23C4100,

EPROM-SEEQ

DQ2764-21V, DQ27128-21V, DQ27C256-12.7V,

EPROM-SGS_THOMSON

M27128A-12.7V, M27256, M27CC512, M27C1000, M27C1001, M27C2001, M27C4001,

EPROM-SIGNETICS

27C64A, 27C128, 27C512,

EPROM-SMOS

27C64H, 27128H, 27C256H,

EPROM-SONY

CXK27C256, CXK27C512,

EPROM-TI

TMS2564-25V, TMS2764-21V, TMS27C64-12.7V, TMS27PC64-12.7V, TMS27128-21V, TMS27C128-12.7V,
TMS27CP128-12.7V, TMS27C256, TMS27PC256, TMS87257, TMS27C512, TMS27CP512, TMS27C010,
TMS27PC010, TMS27C020, TMS27PC020, TMS27C040, TMS27PC040,

EPROM-TOSHIBA

TMM2716-25V, TMM2732-21V, TMM2764-21V, TMM2764A-12.7V, TMM27128-21V, TMM27128A, TMM27256A,
TMM27256AD, TMM27512, TC541000, TC541001, TC571000, TC571001, TC532000, TC572000,
TC534000, TC574000,

EPROM-VLSI

VT2716-25V, VT2732-21V, VT27C64, VT27C128, VT27C256, VT27C512,

EPROM-WSI

WS2716-25V, WS2732-21V, WS27C512F, WS27C64F, WS57C64F, WS27C128F, WS57C128F, WS57C128FB,
WS27C256F, WS27C256L, WS57C256F, WS57C256FB, WS27C512L, WS27C010F, WS27C010L, WS57C65,
WS57C257, WS57C51C, WS57C71C,

EEPROM-AMD

AM29C257, AM28F256, AM28F512, AM28F010/A, AM28F020/A, AM29F256, AM29F512, AM29F010,
AM29F010B, AM29F020, AM29F020B, AM29F040, AM29F040B, AM29LV010B, AM29LV020B, AM29LV040B,
AM29F001B, AM29F001BB, AM29F001T, AM29F001BT, AM29F002B, AM29F002BB, AM29F002T, AM29F002BT,
AM29F002NB, AM29F002NT, AM29LV001B, AM29LV001T, AM29LV001BB, AM29LV001BT, AM29LV002B,
AM29LV002BB, AM29LV002T, AM29LV002BT,

EEPROM-AMIC

A29512, A29010, A29020, A29040, A29L010, A29L020, A29L040, A29001, A290011, A29002,
A290021, A49LF020, A49LF040,

EEPROM-ASD

AE29F1008, AE29F2008, AE29F4008, AE49F1008, AE49F2008,

EEPROM-MACRONIX

MX28F1000, MX28F2000, MX29F010, MX29F020, MX29F040, MX29F001T/B, MX29F002T/B, MX29F004T/B,

EEPROM-ATMEL

AT2816, AT2816A, AT28C16, AT2817A, AT28C17, AT2864A, AT28C64, AT28HC64, AT28C64X,
AT28C64L, AT28PC64, AT28C64B, AT28HC64B, AT28LV64B, AT28C256, AT28C257, AT28C512,
AT28C010, AT28C020, AT28C040, AT28C040A, AT28F256, AT28F257, AT28F512, AT28F010,
AT28F020, AT29C257, AT29C256, AT29C257, AT29C512, AT29C010, AT29C010A, AT29C020,
AT29C040, AT29C040A, AT29LV512, AT29LV010, AT29LV010A, AT29LV020, AT29LV020A, AT29LV040,
AT29LV040A, AT49F010, AT49F020, AT49F040, AT49F001, AT49F001N, AT49F001T, AT49F001NT,
AT49F002, AT49F002N, AT49F002T, AT49F002NT, AT49F002A, AT49F002AN, AT49F002AT, AT49F002ANT,
AT49BV020, AT49BV040, AT49LW040*32PLCC, AT49LW080*32PLCC, AT49LL020*32PLCC, AT49LL040*32PLCC,
AT49LL080*32PLCC, AT49F010, AT49F020, AT49F040, AT49LV010, AT49LV020, AT49LV040,
AT49BV/LV001, AT49BV/LV002, AT49BV/LV004, AT49LW040*32PLCC, AT49LW080*32PLCC, AT49LL020*32PLCC,
AT49LL040*32PLCC, AT49LL080*32PLCC,

EEPROM-ACTRANS

AC39LV512, AC39LV010, AC39LV020, AC39LV040,

EEPROM-WINBOND

W27E257, W27E512, W27E010, W27E020, W27E040, W27C257, W27C512, W27C010, W27C020,
W27C040, W27F257, W27F512, W27F010, W27F020, W27F040, W28F256, W28F257, W28F512,
W28F010, W28F020, W29EE010, W29EE011, W29EE012, W29C010, W29C020, W29C040, W49F010,
W49F020, W49F040, W49L010, W49L020, W49L040, W49F001, W49F001N, W49F001T, W49F001NT,
W49F002, W49F002N, W49F002T, W49F002NT, W49F002U, W49L001, W49L002, W49V002, W49V004,
W39V040A, W39V040FA, W39V040FB, W39V040B, W39V040C, W39V040FC, W39V080F, W39V080FA,
W39V080FB, W39L512, W39L010, W39L020, W39L040,

EEPROM-CATALYST

CAT2816, CAT2816A, CAT28C16, CAT2817A, CAT28C17, CAT2864A, CAT28C64, CAT28HC64, CAT28C256,
CAT28F512/I, CAT28F512V5/I, CAT28F010/I, CAT28F010V5/I, CAT28F020/I,

EEPROM-DALLAS

DS1220Y, DS1220AB, DS1220AD, DS1225AB, DS1225AD, DS1225D, DS1225DE, DS1225Y, DS1230Y,
DS1230AB, DS1245Y, DS12449, DS1250Y,

EEPROM-EON

EN29F040, EN29F040A, EN29F004B, EN29F004T, EN29F001B, EN29F001T, EN29F002B, EN29F002NB,
EN29F002T, EN29F002NT,

EEPROM-EXEL

2816, 2816A, 28C16, 2817A, 28C17, 2864A, 28C64, 28HC64, 28C256,

EEPROM-EMTC

EM29SF002,

EEPROM-FUJITSU

2816, 2816A, 28C16, 2817A, 28C17, 2864A, 28C64, 28HC64, 28F256, 28F512, 28F010/A,
28F020/A, 29F010, 29F010A, 29F010B, 29F020, 29F020A, 29F020B, 29F040, 29F040A, 29F040B,
MBM29LV010, MBM29LV020, MBM29LV040, MBM29F001B, MBM29F001T, MBM29F002B, MBM29F002T,

EEPROM-HYNIX

HY29F010, HY29F010B, HY29F020, HY29F020B, HY29F040, HY29F040B, HY29LV010B, HY29LV020B,
HY29LV040B, HY29F001B, HY29F001BB, HY29F001T, HY29F001BT, HY29F002B, HY29F002BB,
HY29F002T, HY29F002BT, HY29F002NB, HY29F002NT, HY29LV001B, HY29LV001T, HY29LV001BB,
HY29LV001BT, HY29LV002B, HY29LV002BB, HY29LV002T, HY29LV002BT,

EEPROM-HITACHI

HN58C65, HN58C66, HN58C256A, HN58C1001,

EEPROM-INTEL

i2816, i2816A, i28C16, i2817A, i28C17, i2864A, i28C64, i28HC64, i28F256A, i28F256,
i28F512, i28F010, i28F020, i28F040, i28F001BX-T, i28F001BX-B, N82802AA*32PLCC, N82802AB*32PLCC,
N82802AC*32PLCC,

EEPROM-ISSI

IS28F010, IS28F020,

EEPROM-MICROCHIP

2816, 2816A, 28C16, 2817A, 28C17, 2864A, 28C64, 28HC64,

EEPROM-MITSUBISHI

2816, 2816A, 28C16, 2817A, 28C17, 2864A, 28C64, 28HC64, M5M28F101P, M5M28F102P, M5M28C64A,

EEPROM-NEC

2816, 2816A, 28C16, 2817A, 28C17, 2864A, 28C64, 28HC64, 28C256,

EEPROM-OKI

2816, 2816A, 28C16, 2817A, 28C17, 2864A, 28C64, 28HC64,

EEPROM-SAMSUNG

2816, 2816A, 28C16, 2817A, 28C17, 2864A, 28C64, 28HC64,

EEPROM-SEEQ

2816, 2816A, 28C16, 2817A, 28C17, 2864A, 28C64, 28HC64, 28C256/A, 28C010,

EEPROM-SGS-THOMSON

GS28F256, M28F256A, M28F512, M28F101, M28F102, M28F1001, M28F201,

EEPROM-ST

M50FW002*32PLCC, M50FW040*32PLCC, M50FW080*32PLCC, M29F001B, M29F001T, M29F002B,
M29F002T, M29W001B, M29W001T, M29W002B, M29W002T,

EEPROM-SST

SST27SF256, SST27SF512, SST27SF010, SST27SF020, SST27VF010, SST27VF020, SST37VF512,
SST37VF010, SST37VF020, SST37VF040, SST2816, SST2816A, SST28C16, SST2817A, SST28C17,
SST2864A, SST28C64, SST28HC64, SST28C256/A, SST28SF040A, SST28VF040A, SST29EE512,
SST29EE010, SST29EE020, SST29EE040, SST29LE512, SST29LE010, SST29LE020, SST29LE040,
SST29VE512, SST29VE010, SST29VE020, SST29VE040, SST29SF512, SST29SF010, SST29SF020,
SST29SF040, SST29VF512, SST29VF010, SST29VF020, SST29VF040, SST39SF512, SST39SF010,
SST39SF020, SST39SF040, SST39LF512, SST39LF010, SST39LF020, SST39LF040, SST39VF512,
SST39VF010, SST39VF020, SST39VF040, M29F001B, M29F001T, M29F002B, M29F002T, M29W001B,
M29W001T, M29W002B, M29W002T, SST49LF002, SST49LF002A, SST49LF003, SST49LF003A, SST49LF004,
SST49LF004A, SST49LF008, SST49LF008A, SST49LF002B, SST49LF003B, SST49LF004B, SST49LF020,
SST49LF020A, SST49LF020?, SST49LF030A, SST49LF040, SST49LF040b, SST49LF080A,

EEPROM-SYNCMOS

F29C51001T, F29C51001B, F29C51002T, F29C51002B, F29C51004T, F29C51004B, S29C51001T,
S29C51001B, S29C51002T, S29C51002B, S29C51004T, S29C51004B, F29C31001T, F29C31001B,
F29C31002T, F29C31002B, F29C31004T, F29C31004B, S29C31001T, S29C31001B, S29C31002T,
S29C31002B, S29C31004T, S29C31004B,

EEPROM-TI

TMS29F256, TMS29F258, TMS29F259, TMS29F010, TMS29F020, TMS29F040,

EEPROM-TOSHIBA

TC58257AP, TC58257AP-LV, TC58F1001P,

EEPROM-VLSI

2816, 2816A, 28C16, 2817A, 28C17, 2864A, 28C64, 28HC64, 28C256/A, 29C010,

EEPROM-MOSEL

V29C51001T, V29C51001B, V29C51002T, V29C51002B, V29C51004T, V29C51004B, F29C51001T,
F29C51001B, F29C51002T, F29C51002B, F29C51004T, F29C51004B,

EEPROM-XICOR

X2816, X2816A, X2816B, X28C16, X28C16A, X28C16B, X2817A, X28C17, X2864A, X28C64,
X28HC64, X28C256, X28HC256, X28TC256, X28VC256, X28C64*32PIN, X28HC64*32PIN, X28C256*32PIN,
X28HC256*32PIN, X28TC256*32PIN, X28VC256*32PIN, X28C010, X28HT010, X28C020, X28HT020,

EEPROM-LINKSMART

LST28001, LST28002, LST28004,

EEPROM-PMC

PM37VF512, PM37VF010, PM37VF020, PM29F002, PM29F004, PM29LV002, PM29LV004, PM39LV512,
PM39LV010, PM39LV020, PM39LV040, PM49FL002, PM49FL004,

EEPROM-PTC

PT28C010, PT28C020,

MPU-AMD

87C51, 87C521, 87C541,

MPU-ATMEL

AT80F51, AT80F52, AT87F51, AT87F52, AT87F55WD, AT87F51RC, AT89C51, AT89LV51, AT89C52,
AT89LV52, AT89C55, AT89LV55, AT89C55WD, AT89C51RC, AT89S51, AT89LS51, AT89S52, AT89LS52,
AT89C1051, AT89LV1051, AT89C2051, AT89LV2051, AT89C4051, AT89LV4051, AT89S8252, AT89LS8252,
AT89S8252, AT89LS8252, AT89S8253, AT89LS8253, AT89S53, AT89LS53, T89C51RB2, T89C51RC2,
T89C51RD2, AT89C51RB2, AT89C51EB2, AT89C51IB2, AT89C51RC2, AT89C51EC2, AT89C51IC2,
AT89C51RD2, AT89C51ED2, AT89C51ID2, AT89S54, AT89S58, AT89S64, AT90S1200, AT90S2313,
AT90S4414, AT90LS4414, AT90S8515, AT90LS8515, AT90S4434, AT90S8535, AT90LS8535, AT90S4434,
AT90LS4434, AT90S2333, AT90S4433, ATTINY11(Hi), ATTINY12(Hi), ATTINY13(Serial), ATTINY15L(Hi),
ATTINY25(Serial), ATTINY45(Serial), ATTINY45(Serial), ATTINY26(12V), ATTINY26L(12V),
ATTINY28L, ATTINY28V, ATTINY2313(DIP20), ATTINY2313V(DIP20), ATMEGA8, ATMEGA8L, ATMEGA8A,
ATMEGA16, ATMEGA16L, ATMEGA16A, ATMEGA8535, ATMEGA8535L, ATMEGA8515, ATMEGA8515L,
ATMEGA32, ATMEGA32L, ATMEGA48*PDIP28, ATMEGA88*PDIP28, ATMEGA88P*PDIP28, ATMEGA88PA*PDIP28,
ATMEGA168*PDIP28, ATMEGA328*PDIP28, ATMEGA328V*PDIP28, ATMEGA48V*PDIP28, ATMEGA88V*PDIP28,
ATMEGA168V*PDIP28, ATMEGA162*DIP40, ATMEGA164*PDIP40, ATMEGA161, ATMEGA161L, ATMEGA163,
ATMEGA163L, AT90S2323, AT90LS2323, AT90S2343, AT90LS2343,

MPU-DALLAS

DS87C520, DS89C420, DS89C430, DS89C440, DS89C450,

MPU-SST

SST89C54, SST89C58, SST89F54, SST89F58, SST89E554RC, SST89E564RD, SST89V554RC, SST89V564RD,
SST89E52RD, SST89E54RD, SST89E58RD, SST89E516RD, SST89E52RD2, SST89E54RD2, SST89E58RD2,
SST89E516RD2, SST89V52RD, SST89V54RD, SST89V58RD, SST89V516RD, SST89V52RD2, SST89V54RD2,
SST89V58RD2, SST89V516RD2,

MPU-PDK

PDK10C32, PDK10C64(60k), PDK10C64(63k),

MPU-STK

STK6033BDIG(DIP40-16K), STK6033BSOG(SOP20-16K), STK6031(DIP40-64K), STK6032(DIP40-64K),
STK6052(as,

MPU-MEGAWIN

MPC89E51A, MPC89E52A, MPC89E53A, MPC89E54A, MPC89E58A, MPC89E515A, MPC89E516A, MPC89L51A,
MPC89L52A, MPC89L53A, MPC89L54A, MPC89L58A, MPC89L516A, MPC82E52AE(DIP20), MPC82E52AS(SOP20),
MPC82E52AT(TSSOP20), MPC82L52AE(DIP20), MPC82L52AS(SOP20), MPC82L52AT(TSSOP20), MPC82E54AE(DIP20),
MPC82E54AE2(DIP28), MPC82E54AP(PLCC32), MPC82E54AE(SOP20), MPC82E54AS2(SOP28), MPC82E54AS3(SSOP28),
MPC82E54AT(TSSOP20), MPC82E54AT2(TSOP28), MPC82L54AE(DIP20), MPC82L54AE2(DIP28),
MPC82L54AP(PLCC32), MPC82L54AE(SOP20), MPC82L54AS2(SOP28), MPC82L54AS3(SSOP28), MPC82L54AT(TSSOP20),
MPC82L54AT2(TSOP28),

MPU-SYNCMOS

SM2952, SM2958, SM2964, SM2965, SM8951A, SM8952A, SM8951B, SM8952B, SM8954, SM8958,
SM89516, SM89516C, SM89516L, SM8954A, SM8958A, SM89516A, SSU7301, SM7908, SM79108,
SM89S16R1, SM7964, SM79164, SM5964C, SM5964A, SM5964AL, SM59264, SM59128, SM894051,
SM59D03G2C, SM59D03G2L, SM59D04G2C, SM59D04G2L, SM59R01G1(DIP40), SM59R02G1(DIP40),
SM894051, SM59R05A5C(DIP40), SM59R05A5L(DIP40), SM59R_G6C(DIP40), SM59R_G6L(DIP40),
SM59R16A5C(DIP40), SM59R16A5L(DIP40), SM59R05G6(DIP40), SM59R09G6(DIP40), SM59R16G6(DIP40),
SM39R2051(20pin), SM39R4051(20pin), SM39R08A2(16pin), SM39R08A2(20pin), SM39R08A2(24pin),
SM39R08A2(28pin), SM39R12A2(16pin), SM39R12A2(20pin), SM39R12A2(24pin), SM39R12A2(28pin),
SM39R16A2(16pin), SM39R16A2(20pin), SM39R16A2(24pin), SM39R16A2(28pin), SM39R05A3(10pin),
SM39R05A3(14pin), SM39R05A3(16pin), SM39R05A3(20pin), SM39R08A3(10pin), SM39R08A3(14pin),
SM39R08A3(16pin), SM39R08A3(20pin), SM39R16A3(10pin), SM39R16A3(14pin), SM39R16A3(16pin),
SM39R16A3(20pin), SM39R02G1(10pin), SM39R02G1(14pin), SM39R04G1(10pin), SM39R04G1(14pin),

MPU-LG

GMS97C51, GMS97C52, GMS97C54, GMS97C58, GMS97C1051, GMS97C2051,

MPU-INTEL

i87C51, i87C52, i87C54, i87C58, i87C51FA, i87C51FB, i87C51FC, i87LC51FA, i87LC51FB,
i87LC51FC, i87C51RA+, i87C51RB+, i87C51RC+, i87C51RD+, i87LC51RA+, i87LC51RB+, i87LC51RC+,
i87LC51RD+,

MPU-PHILIPS

P87C51, P87C52, P87C54, P87C58, P87C51X2, P87C52X2, P87C54X2, P87C58X2, P87C51FA,
P87C51FB, P87C51FC, P87LC51FA, P87LC51FB, P87LC51FC, P87C51RA+, P87C51RB+, P87C51RC+,
P87C51RD+, P87LC51RA+, P87LC51RB+, P87LC51RC+, P87LC51RD+, P87C591, P89C51Uxxx, P89C52Uxxx,
P89C54Uxxx, P89C58Uxxx, P89C51Bx, P89C52Bx, P89C54Bx, P89C58Bx, P89C51X2, P89C52X2,
P89C54X2, P89C58X2, P89C51RA+, P89C51RB+, P89C51RC+, P89C51RD+, P89C51RA2Hxx, P89C51RB2Hxx,
P89C51RC2Hxx, P89C51RD2Hxx, P89C51RA2B, P89C51RB2B, P89C51RC2B, P89C51RD2B, P89C51RA2F,
P89C51RB2F, P89C51RC2F, P89C51RD2F, P89C60X2, P89C61X2, P89C660, P89C662, P89C664,
P89C668, P87LPC759, P87LPC760, P87LPC761, P87LPC762, P87LPC764, P87LPC767, P87LPC768,
P87LPC769, P89LPC901, P89LPC902, P89LPC903, P89LPC906, P89LPC907, P89LPC908, P89LPC9107,
P89LPC912, P89LPC913, P89LPC914, P89LPC915, P89LPC916, P89LPC917, P89LPC920, P89LPC921,
P89LPC922, P89LPC9221, P89LPC924, P89LPC925, P89LPC930, P89LPC931, P89LPC932, P89LPC932A1,
P89LPC933, P89LPC934, P89LPC935, P89LPC936, P89LPC938, P89V51RB2, P89V51RC2, P89V51RD2,
P89LV51RB2, P89LV51RC2, P89LV51RD2,

MPU-WINBOND

W78E51, W78E51B, W78LE51, W78E51C, W78E051C, W78LE51C, W78L051C, W78E52, W78E52B,
W78LE52, W78E52C, W78E052C, W78LE52C, W78L052C, W78E54, W78E54B, W78E054C, W78LE54,
W78E54C, W78E054C, W78L054C, W78E58, W78E58B, W78E058, W78E058B, W78LE58, W78E516B,
W78LE516, W78E51D, W78E52D, W78E54D, W78E051D, W78E052D, W78E054D, W78E58D, W78E516D,
W78E058D, W78E0516D, W78ERD2, W78IRD2, W78E62, W78E65, W78L065, W78E365, W78LE365,
W78E858, W77E54, W77E58, W77LE58, W77E516, W77LE516, W77E532, W79E532, W79E632, W79E201,
W79E802ADG(DIP20), W79E802ASG(SOP20), W79E803ADG(DIP20), W79E803ASG(SOP20), W79E804ADG(DIP20),
W79E804ASG(SOP20), W79E821A(20PIN), W79E822A(20PIN), W79E823A(20PIN), W79E824A(20PIN),
W79E825A(20PIN), W79E2051(20PIN), W79E4051(20PIN), W79E2051-DU(20PIN), W79E4051-DU(20PIN),
W79E2051-SU(20PIN), W79E4051-SU(20PIN), W79E8213(DIP20ICP), N79E352(ICP), N78E366(DIP40),
N79E815AS28, N79E815AT28, N79E814AS28, N79E814AT28, N79E815AS20, N79E815AT20, N79E814AS20,
N79E814AT20, N79E8132AS16,

MPU-MICROCHIP

PIC12C508, PIC12C508A, PIC12C508B, PIC12C509, PIC12C509A, PIC12C509B, PIC12C518,
PIC12C519, PIC12F508, PIC12F509, PIC12F510, PIC12C671, PIC12C672, PIC12CE673, PIC12CE674,
PIC12F508, PIC12F509, PIC12F510, PIC12F629, PIC12F675, PIC12F635-8PIN, PIC12F683-8PIN,
PIC16F636-8PIN, PIC16F639-8PIN, PIC16F684-8PIN, PIC16F685-8PIN, PIC16F687-8PIN, PIC16F688-8PIN,
PIC16F689-8PIN, PIC16F690-8PIN, PIC16F636-14PIN, PIC16F684-14PIN, PIC16F688-14PIN,
PIC16F639-20PIN, PIC16F685-20PIN, PIC16F687-20PIN

Đánh giá

Chưa có đánh giá nào.

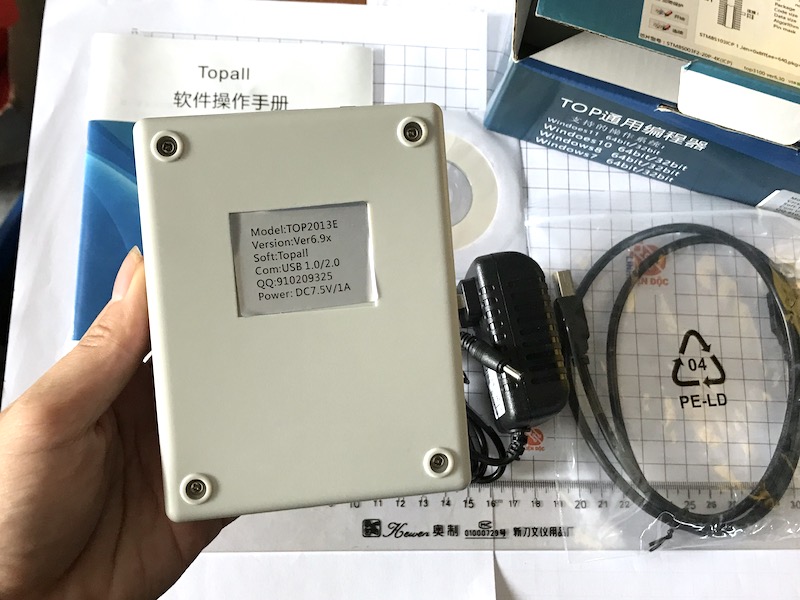

TOP2013 Mạch Nạp Đa Năng cho EEprom vi điều khiển

Thông số kỹ thuật

Danh sách các loại chip mà mạch nạp TOP 2013 hỗ trợ

GAL16V8 ATF16V8 GAL20V8 GAL22V8

EPROM-AMD

EPROM-ATMEL

EPROM-CATALYST

EPROM-FUJITSU

EPROM-GENERAL

EPROM-HITACHI

EPROM-ST

EPROM-HYUNDAI

EPROM-ICT

EPROM-INTEL

EPROM-MATSUSHITA

EPROM-MICROCHIP

EPROM-MITSUBISHI

EPROM-MXIC

EPROM-NEC

EPROM-NS

EPROM-OKI

EPROM-RICOH

EPROM-SAMSUNG

EPROM-SEEQ

EPROM-SGS_THOMSON

EPROM-SIGNETICS

EPROM-SMOS

EPROM-SONY

EPROM-TI

EPROM-TOSHIBA

EPROM-VLSI

EPROM-WSI

EEPROM-AMD

EEPROM-AMIC

EEPROM-ASD

EEPROM-MACRONIX

EEPROM-ATMEL

EEPROM-ACTRANS

EEPROM-WINBOND

EEPROM-CATALYST

EEPROM-DALLAS

EEPROM-EON

EEPROM-EXEL

EEPROM-EMTC

EEPROM-FUJITSU

EEPROM-HYNIX

EEPROM-HITACHI

EEPROM-INTEL

EEPROM-ISSI

EEPROM-MICROCHIP

EEPROM-MITSUBISHI

EEPROM-NEC

EEPROM-OKI

EEPROM-SAMSUNG

EEPROM-SEEQ

EEPROM-SGS-THOMSON

EEPROM-ST

EEPROM-SST

EEPROM-SYNCMOS

EEPROM-TI

EEPROM-TOSHIBA

EEPROM-VLSI

EEPROM-MOSEL

EEPROM-XICOR

EEPROM-LINKSMART

EEPROM-PMC

EEPROM-PTC

MPU-AMD

MPU-ATMEL

MPU-DALLAS

MPU-SST

MPU-PDK

MPU-STK

MPU-MEGAWIN

MPU-SYNCMOS

MPU-LG

MPU-INTEL

MPU-PHILIPS

MPU-WINBOND

MPU-MICROCHIP
